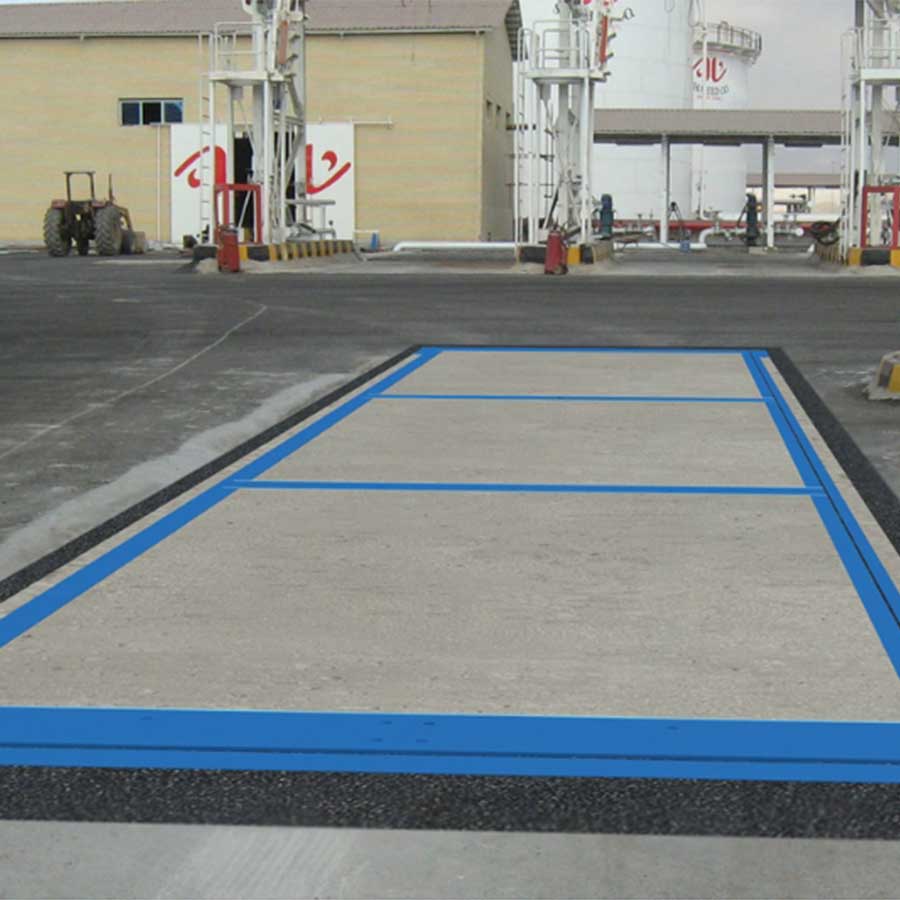

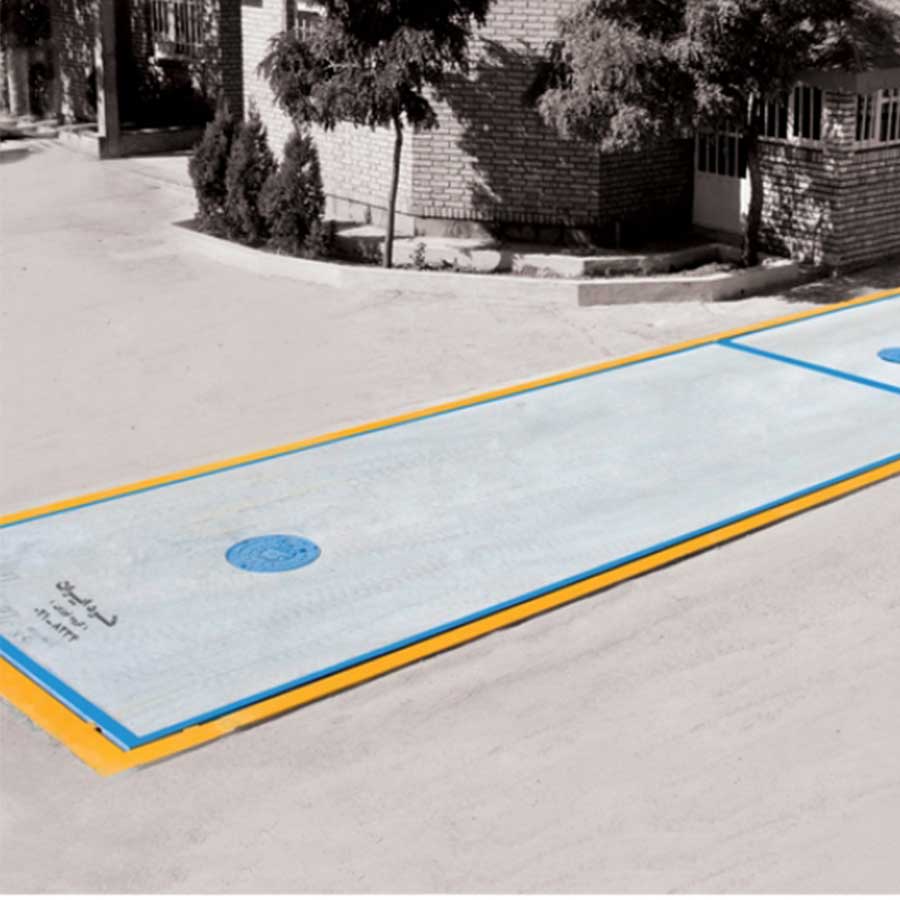

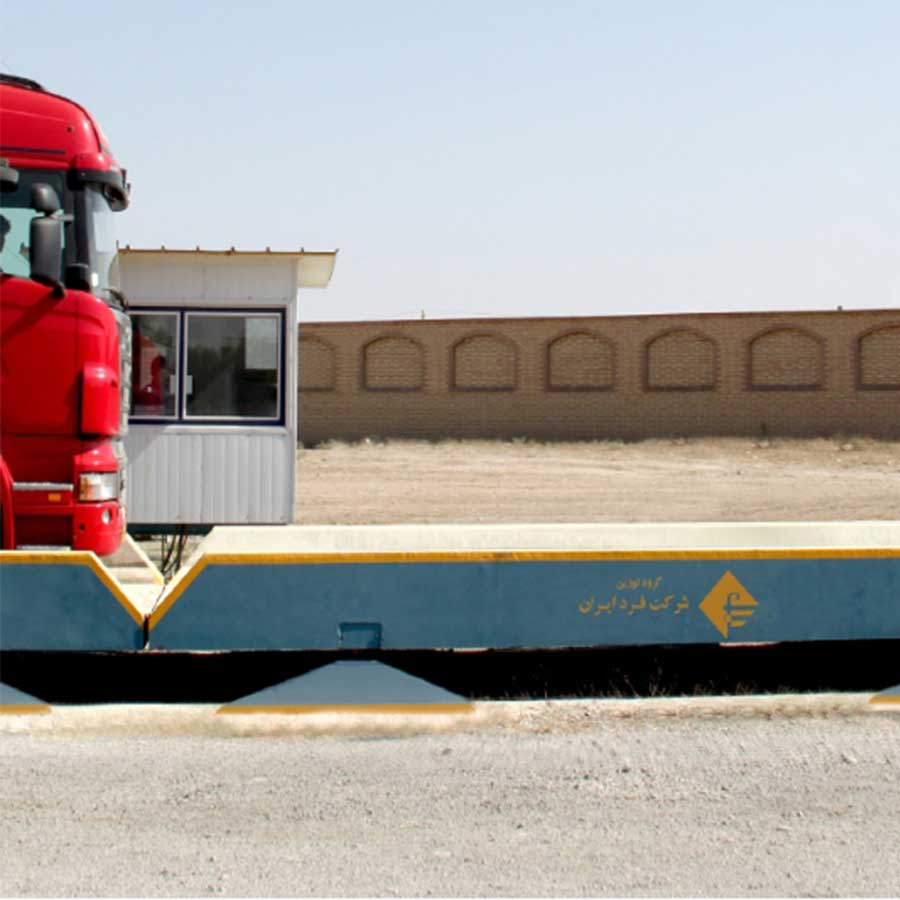

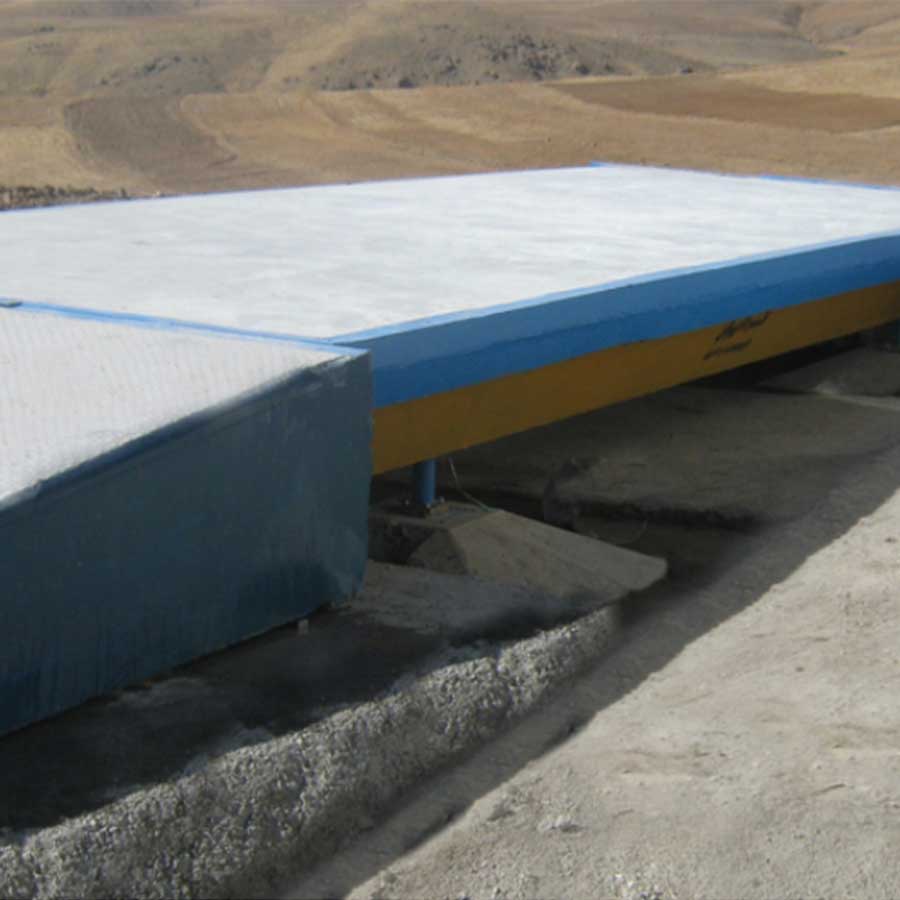

prefabricated truck scale

To build this class of truck scales, the concrete is poured and cured in the factory in a controlled environment. Fard Iran’s prefabricated concrete platforms are made under the supervision of experts in the company’s facilities for optimum strength. Utilizing the latest technologies, the company employs a cost-effective approach to build a durable platform for an excellent scale.
To achieve this:
• The ponding method (in pools of water) is applied to cure concrete
• Water is desalinated by the latest available technologies
• The sand and gravel are washed properly to separate sediment
• Polypropylene fiber reinforced concrete is used
• High-quality rebar is used to reinforce the concrete and, thus, the scale
These truck scales which are available in a wide range of standard and customized configurations to suit customers’ application needs, can be transported to the site quickly to be installed easily.
The main features of Fard Iran’s prefabricated concrete truck scales are:

High Tensile Strength Concrete Decks
Extremely Durable Concrete Deck
Resistance to Corrosion
High Accuracy Over Time
Less Thermal Transmittance
Relocation of the Scale is Possible
Stainless Steel Load Cells
Easy Load Cell Access

Category:
About the product

About the product

The exceptional advantages of concrete structures including lower cost, higher quality and longer life in comparison with other types of structures prompted Fard iran Company to undertake an extended study on concrete structures and seek out expert advice from industry and academia. The outcome of these efforts was agreements Fard iran Company entered into with certain scale producers in Germany and Czech Republic for the transfer of know-how and technologies to produce concrete deck truck scales.Fard iran Company’s scientific and technical background together with various educational backgrounds and experiences of its technical personnel were instrumental on further development of the acquired know-how.Fard iran Company is currently mass producing and marketing the new truck scales with improved concrete structure, called Combo Scales, in various capacities,.

technical specification

technical specification

Increased durability by using special fiber additives to avoid even microscopic cracks

Using advance water purification system to filter and clean water used in the concrete mix

• only 5 minutes between concrete production and pouring
•(Manufactured for extreme environment (temp/humidity/sun light
•Higher investment value vs steel &semi-concrete deck
•(Minimum execavation requirments(65 cm pit-less
•(Minimum execavation requirements (35 cm With Pit
•Resistant to temperature changes
•Maintenance free
•Quick Installation
•Accurate, Durable& Movable

Full Description

Full Description

Advantages of combo scales :

• Lower thermal conductivity
• Higher impact resistance
• Higher environmental and climate resistance
• Transfer of technology , design and construction of Europe
• Lower cost
• Quality and higher strength
